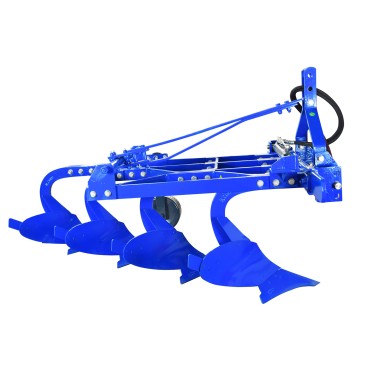

Aydın Pulluk Vineyard Plow with Hydraulic Slide - 4 processing units - 28cm between rows
658.80₺
- Ayın Yıldızları
- Günün Fırsatları
- Rakipsiz Fiyat
- Sezon Sonu Fırsatları
-
Spare Parts
- Agricultural Sprayer Parts
- Baler Spare Parts
- Beet Dismantling Parts
- Cultivator Spare Parts
- Disc Harrow Spare Parts
- Forage Machine Spare Parts
- Hoe Machine Parts
- Milking Spare Parts
- Mower Spare Parts
- Other Spare Parts
- Plow Spare Parts
- Rake Spare Parts
- Seeder Spare Parts
- Threshing Machine Parts
- Trailer Spare Parts
- Tükenmek Üzere
- Tillage
- Harvest Threshing
- Sowing Planting Fertilizing
- Bitki Koruma Bakım
- Trailer Tanker
- Livestock
Your shopping cart is empty!
- Description
- Warranty
- Teknik Özellikler
- Shipping Methods
- Taksitler
- Kredi Seçenekleri
- Reviews (0)
- Q & A
General Product Warranty
This product is under the manufacturer's 2-year warranty.
Warranty Coverage
The warranty of the products you have purchased is valid for 1 year for the components in contact with the soil, against structural and manufacturing defects, and for 2 years for the upper chassis component and tractor connection mechanism.
Conditions such as deformation, wear and tear of parts that work by contacting the ground due to use are not covered by the warranty.
Scratches on the painted parts of the machine parts are not covered by the warranty. However, all kinds of damage and defects such as bending, bending, breaking, cracking that occur in these components and prevent the use of the machine or cause the structural form of the machine to deteriorate are within the scope of the warranty.
Cases Out of Warranty
When choosing a machine, make sure that it is suitable for the horsepower of your tractor. If you connect the machine you purchased to a tractor with more horsepower than it needs, it will be difficult for you to feel that the machine is struggling. In these cases, your machine may be damaged and it will be out of warranty.
The use of machines working by contacting the soil in fields with high stone ratio may cause it to be out of warranty. For this reason, you should definitely consider the soil conditions you will use in your machine selection.
It is important that you correctly connect the machine you purchased to your tractor. After connecting the machine to the tractor, its base must be adjusted to be parallel to the soil surface. In addition, before plowing, make sure that the end irons face your tractor at a 90 degree right angle. Do not forget that in case of damage to the machine, which is not connected correctly, it will be out of warranty!
Be sure to check whether the machine you purchased has any parts that need to be lubricated before using it. Remember to lubricate these components, if any, before each use. Failures caused by the machine used without maintenance are not covered by the warranty.
Operating the purchased machine in any job other than its intended use will cause your machine to be out of warranty.
Transport Guarantee
Our company is under warranty until the machine you have purchased is delivered to you by the transport vehicle. This warranty covers all kinds of damages, excluding scratches on the machine surface.
Payment Guarantee
Our company takes care to deliver the products you buy within the estimated delivery time written on the product pages. However, delivery times may take 3 to 5 days longer for items that are out of stock at the time of purchase.
If it is understood that the product cannot be delivered for any reason after you purchase the product, the payment you made for the product will be returned to you within 3 days after the payment date.
Enforcement of Warranty
If the machine you purchased is damaged during transportation, you should take at least three pictures that can be seen from different angles and send it to us, which will clearly show the damage to the machine before using it. The pictures you send will be evaluated as soon as possible. If the machine you have purchased has been severely damaged and cannot be used, it will be replaced by a new one by our company. However, if the damage is at a level that you can fix by your own means, a new part of the damaged part will be sent to you immediately.
If you realize that any part is missing after receiving the machine, contact us and the missing part will be delivered to you as soon as possible.
If you detect a production defect, structural defect or malfunction after receiving the machine, you can get help by contacting us. In such cases, you will be directed to the authorized service to correct the error. If there is no possibility to send an authorized service to your region, the machine will be taken from you, repaired and delivered to you.
In case the machine fails during operation, you should take at least three pictures so that we can understand the malfunction, provided that they are at the place where the malfunction occurred. In addition, you will be asked for pictures of the last drawing that the machine worked before it malfunctioned. Please take these pictures and send them to us. In order for the fault to be resolved as soon as possible, spare parts or service support will be provided to you, depending on the situation.
All warranty conditions written here are valid for the products purchased from ziraatmakinem.com.

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |

Vade | Aylık | Toplam |
---|---|---|
1 | ₺658.80 | ₺658.80 |
2 | ₺329.40 | ₺658.80 |
3 | ₺219.60 | ₺658.80 |
4 | ₺164.70 | ₺658.80 |
5 | ₺131.76 | ₺658.80 |
6 | ₺109.80 | ₺658.80 |
7 | ₺94.11 | ₺658.80 |
8 | ₺82.35 | ₺658.80 |
9 | ₺73.20 | ₺658.80 |
Diğer Kartlar

Product Description
These plows can be slid to the right by 45 cm with the sled working with the piston on them. In this way, they can be used in works such as plowing under tree branches or between tree trunks, where it is difficult to approach with the tractor. All parts of our Aydın plow brand plows that come into contact with the soil are made of heat-treated steel. Chassis heights and row spacing of the plows are optimized to provide the best plow experience. Thanks to the fully curved soil tilting units on it, our plows completely overturn the soil and prevent the leveling disorders caused by the soil layers leaning against each other during the tillage.With its reinforced profile chassis and roof mounting, it offers a very long-lasting lifetime.
Things to pay attention
Before purchasing a plow, please check its compatibility with the horsepower of the tractor you will use.
A plow that is too big for your tractor will cause your tractor to burn more fuel. At the same time, forcing the tractor to pull the plow will damage the pressure lining system. If the tractor has difficulty pulling the plow and is skidding, it will cause the tractor's rear wheels to wear very quickly.
Technicial Specifications
Product code : MKB2804
Plow chassis type : Standard Steel Flat Chassis
Plow chassis height : 61cm
Machine Body Size : 8 inch
Number of processing units : 4 unit
interrow processing dimension : 28cm
Distance Between Processing Units : 57cm
Plow Total Working Width : 112cm
Plow Working Depth : 25-30cm
plow weight : 330kg
Required Tractor Power : 60-70 hp
Warranty Period : 2 Year
International Sales : Yes
Product Description
Weight | 0 kg |
Dimension (L x W x H) | 0 x 0 x 0 cm |
Model and Capacity | |
Product Model | Garden Plow with Hydraulic Skid |
Job Ability | Tillage and Tilting |
Business Capacity | Min 2,24 da/h |
Total Working Width | 112 cm |
Compatible Soil Structure | Medium Hard Soil Models |
Compatible Land Model | Lands with Sparse and Small Stone Ratio |
Compatible Surface Structure | Can Work on All Soil Surfaces with or without Leveling |
Unit Features | |
Unit Model | Flat Ear Plow Unit |
Number of Units | 4 Piece |
Ünite Ölçüsü | 11 inch |
Measure Between Units | Interrow Processing Size 28 cm |
Number of Unit Groups | Single Row Units |
Unit Carrier | Special Alloy Steel Leg |
Carrier Unit Connection | Plow Legs are Connected to the Units with the Help of Bolts with the Help of a Special Miter |
Carrier Chassis Connection | Plow Legs are attached to the chassis with the help of Bolts |
Carrier Chassis Connection Distances | 50 cm |
Unit Machining Depth | 25-35 cm |
Unit Working Width | 76 cm Ear Width |
Unit Operating Direction | Forward. Units can be moved 45 cm to the right and left with the help of a hydraulic slide. |
Unit Handler Model | Knife Made of Steel |
Number of Handlers in a Unit | 1 Piece |
Total Number of Processors | 4 Piece |
Machine Leveling and Angle Adjustments | |
Angle Settings | Adjustable with Tractor Side Link Arms |
Leveling Settings | Adjustable with Tractor Top Link Arm |
Transport and Control | |
Tractor Connection | Tractor Three Point Connector |
Road and Work Positioning | Doesn't Have Any Extra Equipment. It is adjusted with the help of the tractor. |
Power Supply Features | |
Power supply | Tractor Draft Power |
Power Transmission | With the Help of the Flat Chassis Made of Parts |
Power Distribution Model | With the Help of Special Alloy Casting Legs |
Required Tractor Power | 60-70 hp |
Chassis Features | |
Chassis Model | Hydraulic Skid Chassis |
Chassis Material | Steel Flat Bar |
Chassis Size | 25x85 mm |
Ground Height | 75 cm |
Other informations | |
Origin | Türkiye |
Product Warranty | 2 Years |
International Sales | Yes |
